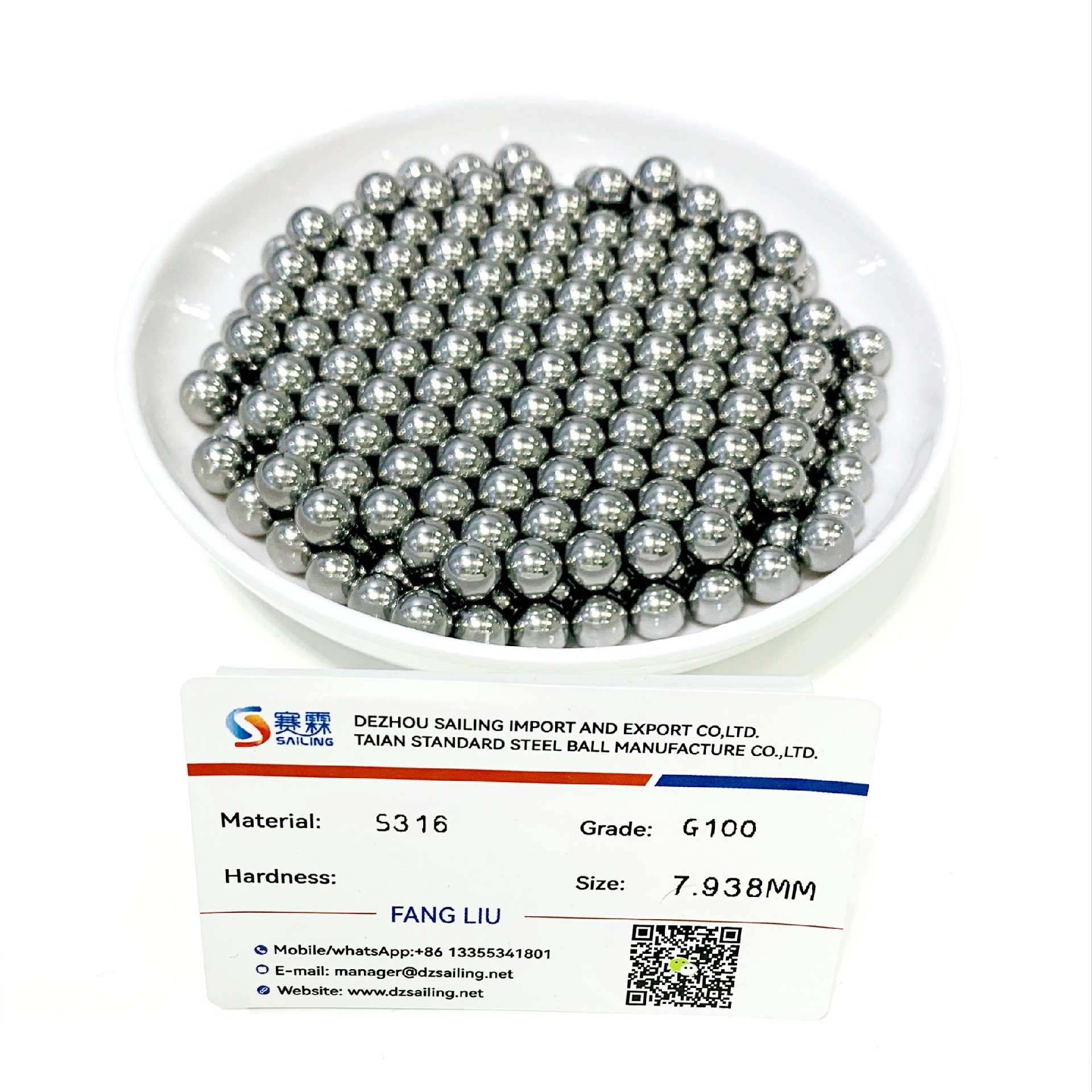

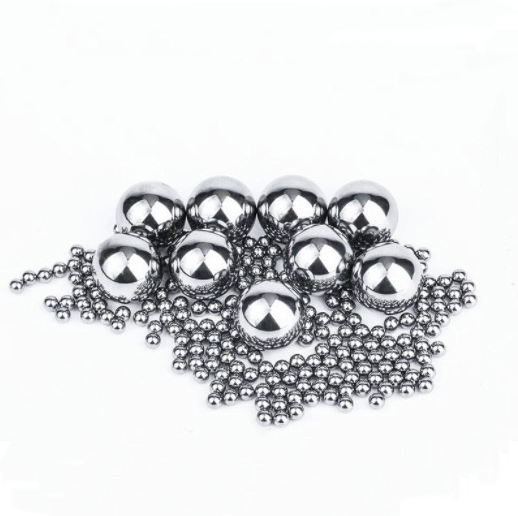

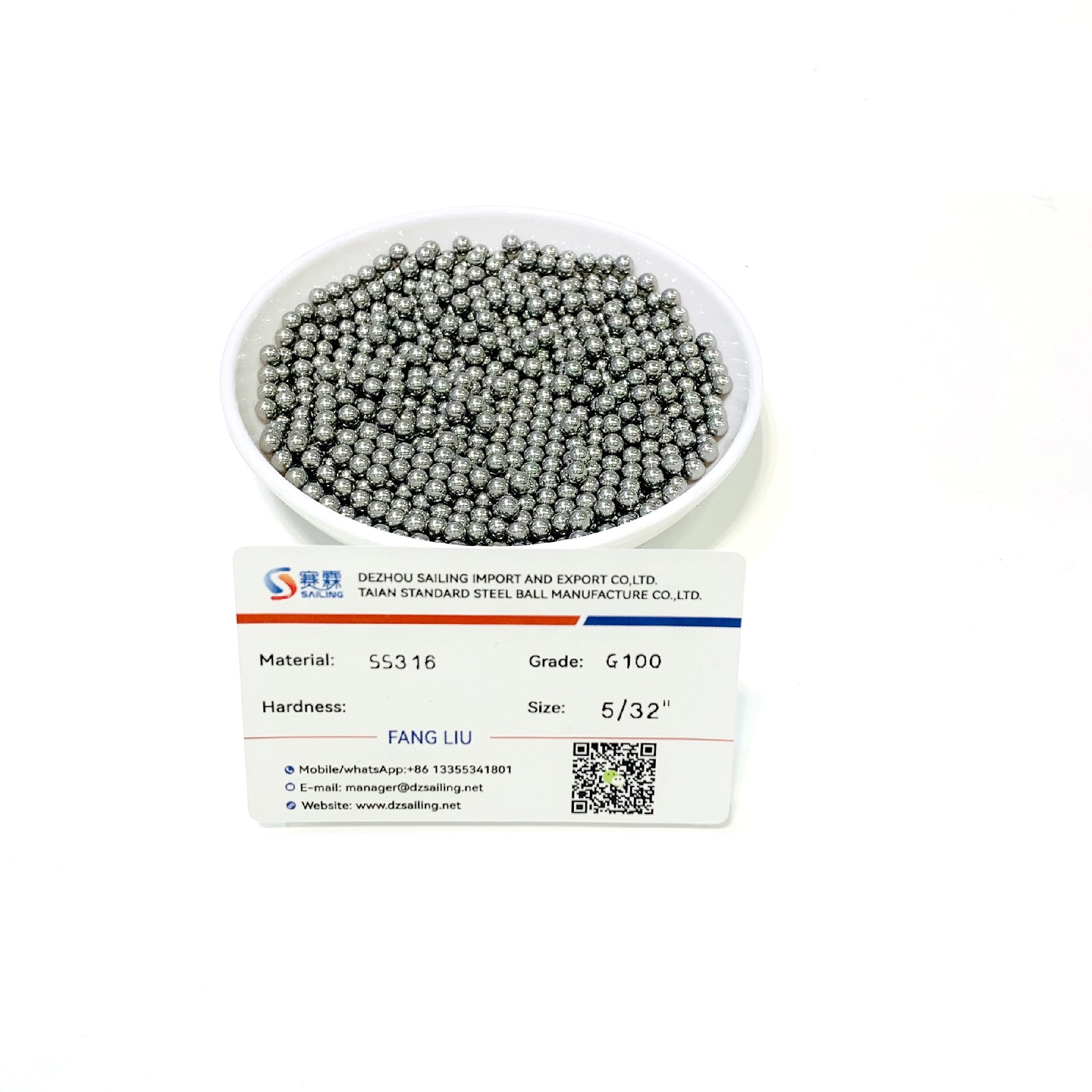

STAINLESS STEEL BALL - 316/316L
Dezhou Sailing Import and Export Co., Ltd.
They are Austenitic stainless steells with feature similar to AISI302/304/304L series, but they are more anti-magnetic and, above all, the addition of molybdenum offers greater chemical resistance, particularty in sulphuric acid concentration.
All balls are annealed and passivated.
The most common applications include their use in the chemical, paper and textile industries (valves, pumps and bearings).
Diameters: 0.5mm to 150mm
Grade: G10-G1000
Equivalent materials to international standards: AISI316, 316L-W1.44010-AFN Z6CND1711-AFN Z6CND1711-B.S..EN58J-JIS SUS316-UNI X5CrNiMo 1712
| CHEMICAL COMPOSITONS % | ||||||||
| Material Type | C | Si | Mn | P | S | Cr | Mo | Ni |
| AISI306 | 0.70max | 1.00max | 2.00max | 0.045max | 0.030max | 16.50/18.50 | 2.00/2.50 | 10.5/13.50 |
| AISI306L | 0.70max | 1.00max | 2.00max | 0.045max | 0.030max | 16.00/18.00 | 2.00/3.00 | 8.00/12.00 |
Average Hardness Index: 135-200HV10
Mechanical Properties:
| Critical Tensile Strength | 63.2kgf/mm2 |
| Compression Strength | 31.7kgf/mm2 |
| Modulus or Elasticity | 19.693kgf/mm2 |
| Specific Weight | 8.04kgf/mm2 |
