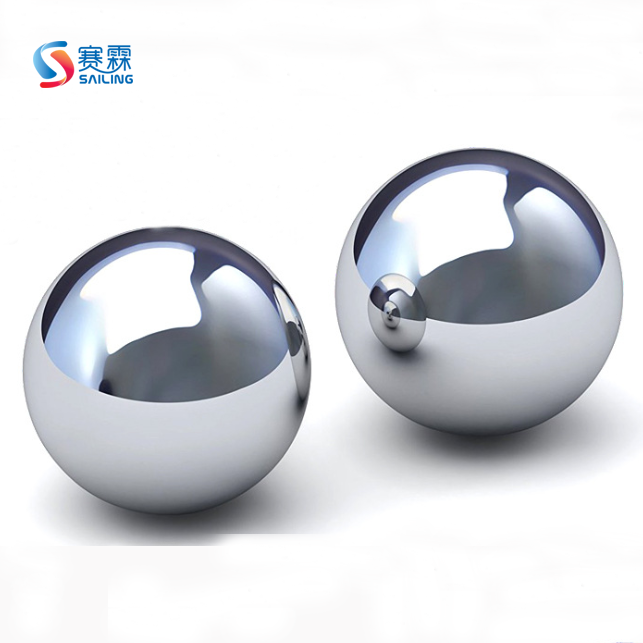

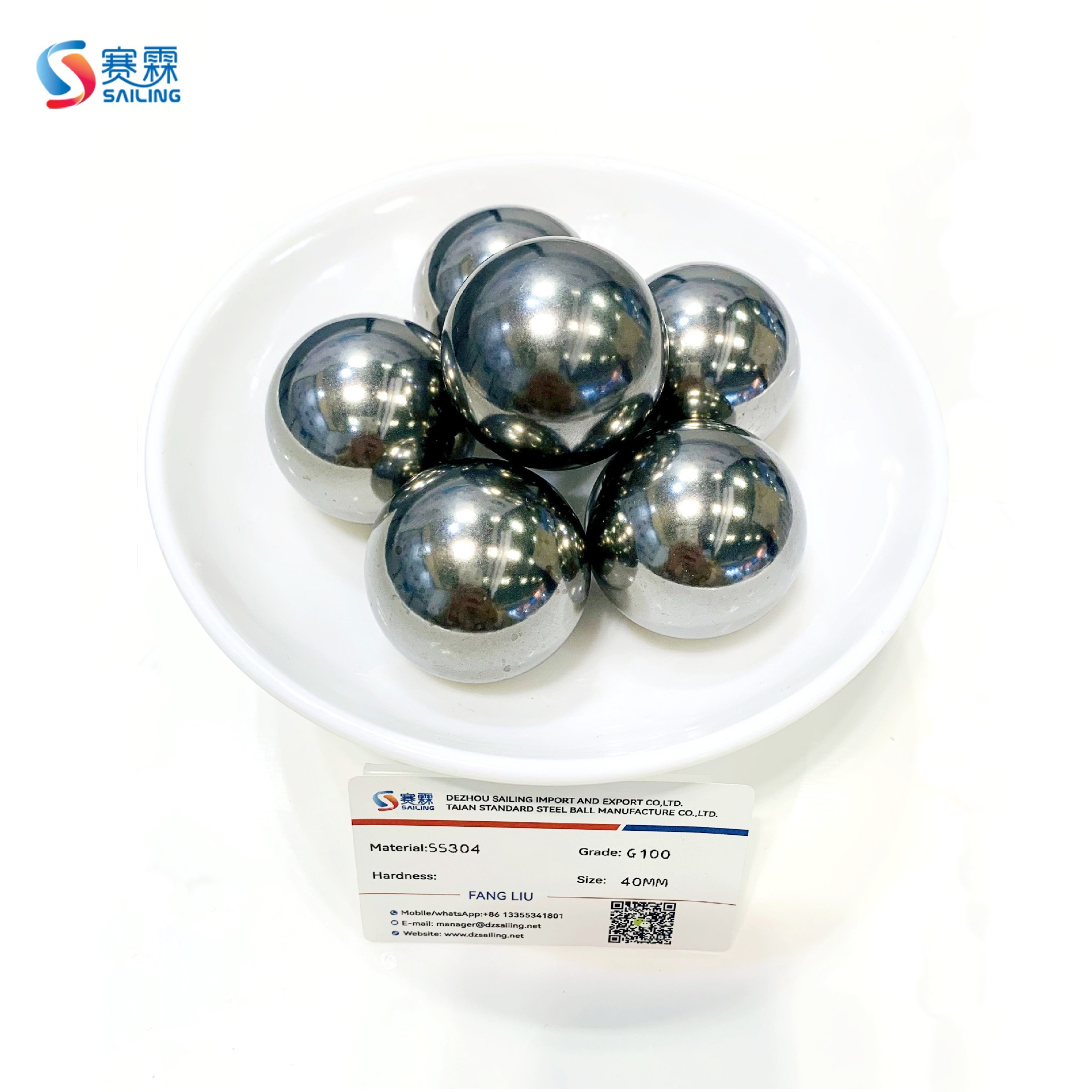

STAINLESS STEEL BALL 302/304/304L
Dezhou Sailing Import and Export Co., Ltd.
Unhardened anti-magnetic austenitic materials with an excellent resistance to corrosion against organic chemicals, oxidising solutions, food products and sterilising solutions, while they are less resistant to sulphuric acids in general.
All ball are passivated.
The most common applications include: aerosol pumps, gardening and home sprays guns, micro-pumps for perfume sprays, valves for medical equipment, agricultural spraying pumps. AISI304L offers lower carbon content.
Diameters: 0.5mm to 100mm
Equivalent materials to international standards: AISI302, 304, 304L - W1.4300 - W14301 - AFN Z6CN18.09 -B.S.EN58E - JIS SUS304 -DIN X 5CrNi 18.09 - UNI X5CrNi 1810
CHEMICAL COMPOSITONS % | |||||||
Material Type | C | Si | Mn | P | S | Cr | Ni |
AISI302 | 0.15max | 1.00max | 2.00max | 0.045max | 0.030max | 17.00/19.00 | 8.00/10.00 |
AISI304 | 0.07max | 1.00max | 2.00max | 0.045max | 0.030max | 17.00/19.00 | 8.50/10.50 |
AISI304L | 0.03max | 1.00max | 2.00max | 0.045max | 0.030max | 18.00/20.00 | 8.00/12.00 |
Average Hardness Index: 135-200HV10
Mechanical Properties:
Critical Tensile Strength | 75-126kgf/mm2 |
Compression Strength | 35-105kgf/mm2 |
Modulus or Elasticity | 20.397kgf/mm2 |
Dpecific Weight | 7.91kgf/mm2 |
