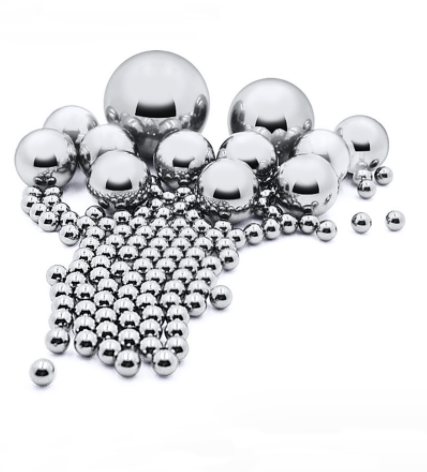

STAINLESS STEEL BALL - 420C
Dezhou Sailing Import and Export Co., Ltd.
Stainless steels with martensite structure resistant to pure water, sream, oil and gasoline ( petrol )
These are magnetic materials with a good mechanical hardness and corrosion resistance. All balls are passivated.
Equivalent Materials to international standards:UNI X40Cr14-W1.3541-W 4034-AFN Z40C13-DIN X45Cr13-JIS SUS420J2
CHEMICAL COMPOSITIONS % - 420C | |||||
C | Si | Mn | P | S | Cr |
0.30/0.50 | 1.00max | 1.00max | 0.040max | 0.030max | 12.50/14.50 |
Average hardness index: 53-57HRC
Diameters: 0.8mm-150mm
Precision Grades: G10-G1000
Mechanical Properties:
Critical Tensile Strength | 65kgf/mm2 |
Specific Weight | 7.75kgf/mm2 |
STAINLESS STEEL BALL - 420C
